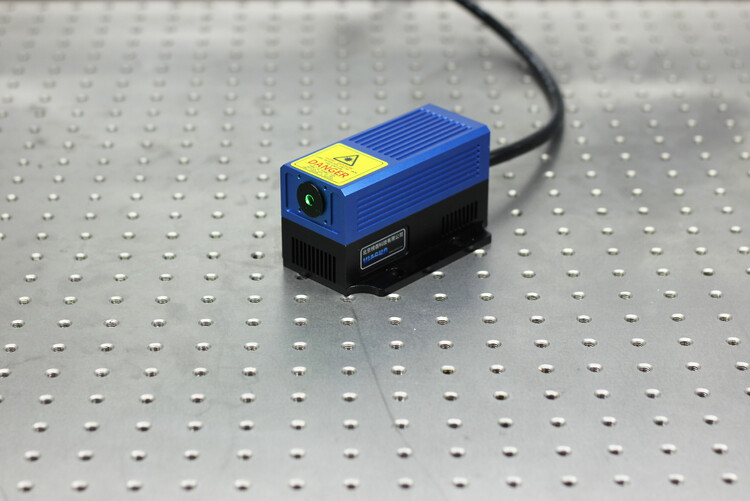

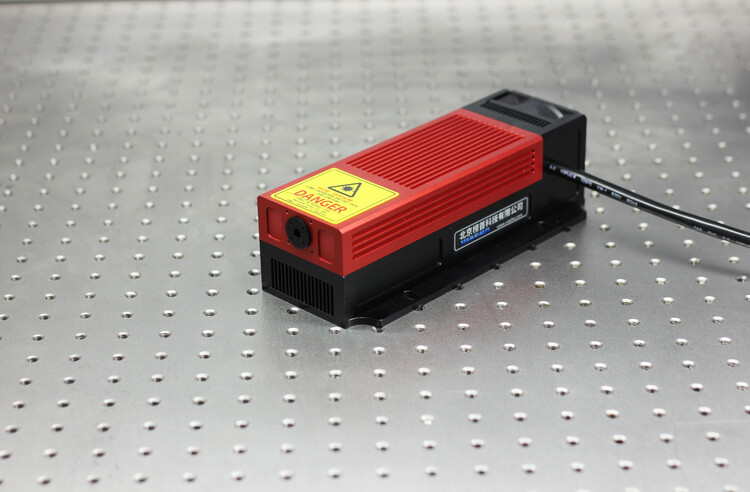

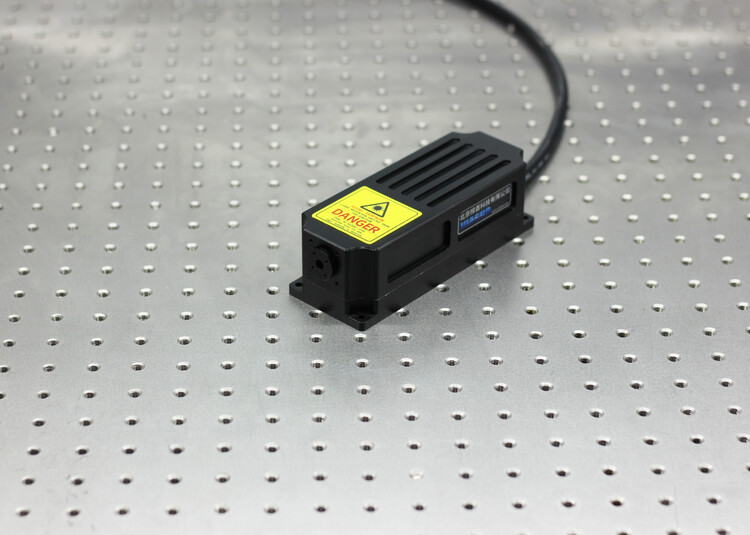

532nm-被動調Q脈沖激光器-1~30mW
功率穩定、可調節
電源自帶過熱、限流保護電路
可外接TTL調制，5KHz以下重復頻率可控
適用于科研、醫療、生物工程等
| 波長Wavelength (nm) | 532 | 束發散角Beam Divergence (full angle, mrad) | 1.2±0.2 | |||
| Q開關Q-switched Crystal | Cr:YAG | 光束直徑Beam Diameter at Aperture (mm) | 1.2±0.2 | |||
| 單脈沖能量 Single Pulse Energy (uJ) | 1~10 | 光束橢圓度 Beam Roundness | >90% | |||
| 重復頻率 Repetition (KHz) | 可控 Controllable | 1~5 | 出光孔高度 Aperture Position (mm) | 27 | ||
| 不可控 Uncontrollable | 5~100 | 激光器 Laser Head | 尺寸 Dimensions (L×W×H, mm) | 136 x 50 x 47 | ||
| 平均功率 Average Power (mW) | S. P. Energy ×Repetition | 重量 Net Weight (kg) | 0.5 | |||
| 工作方式Working Mode | Q-Switched Pulse | 可配電源型號 Integrated Driver Model | VD-II-Q | |||
| 光斑模式 Beam Mode | 橫模 Transverse | TEM00 | 制冷方式Cooling System | TEC | ||
| 縱模 Longitude | Multi-longitude | 預熱時間Warm-up Time (minutes) | <15 | |||
| 線寬Spectral Linewidth (nm) | <0.1 | 工作溫度Operation Temperature (℃) | 18~30 | |||
| 偏振方式 Polarization | Line polarization | 使用壽命Expected Lifetime (hours) | >10000 | |||
| 偏振比Polarization Ratio | >100:1 | 保修期Warranty Time | 1 year | |||
| 光束質量Beam Quality (M2 factor) | <1.2 | |||||
