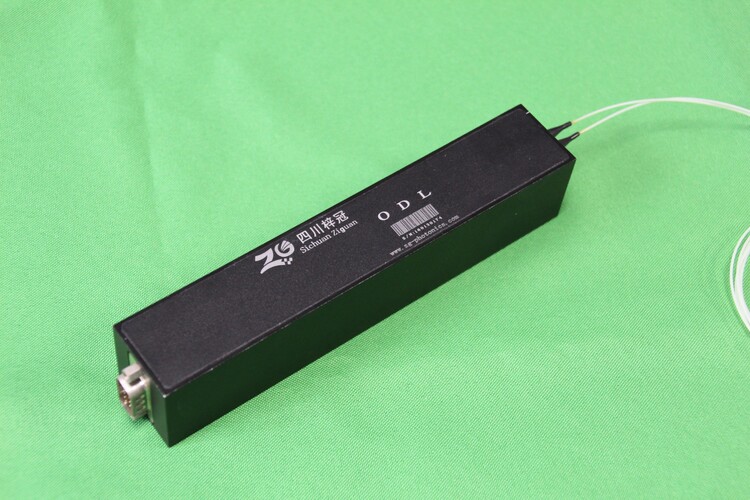

單通道可控電動光延遲線
Parameter | Value |
Wavelength Range | C-Band or L-Band OR Other Wavelength |
Optical Delay Range | 0~100 ps continuous for 100ps model |
0~330 ps continuous for 330ps model | |
0~600 ps continuous for 600ps model | |
0~1500ps continuous for 1500ps model | |
Readout Scale Resolution | 0.1ps |
Insertion Loss | typ.0.8dB,max 1.2dB |
Insertion Loss Variation | ±0.25dB over entire range for 100ps model |
±0.35 dB over entire range for 330ps model | |
±0.55 dB over entire range for 600ps model | |
±1.5 dB over entire range for 1500ps model | |
Return Loss | > 55 dB |
Extinction Ratio | >18 dB |
Operating power (optical) | max 500mW |
Optical Power Handling | 0~50℃ |
Operating Temperature | -40~65℃ |
Fiber Type | Conning SMF-28,or Fujikura PM Panda fiber |
Size (L x W x H) | 69.5 x 35.5X32mm for 100ps model |
110 x 35.5X32mm for 330ps model | |
157x 35.5X32mm for 600ps model | |
157x 35.5X46mm for 1500ps model |
